Wear Rod
Drawings

The finest wear rods and... we can prove it!

To prevent cross-threading, rotate the nut counter-clockwise until you feel the end of the nut's thread fall over the end thread of the bolt. Then, turn clockwise to tighten.

Do not over tighten nuts!  Tighten only until firmly snug.  This is especially important when working with plastic skis.  They always have a cushioned feel to them, unlike steel skis which provide a dead stop to the nut. We use 5/16" x 18 bolts because these are all that is necessary - strength-wise. Having more than one bolt only helps keep the host bar straight. Also, this allows the easiest installation without any need to drill the skis or use a hammer. It is not the size of the bolts, but the number and location that is important. Easy installation

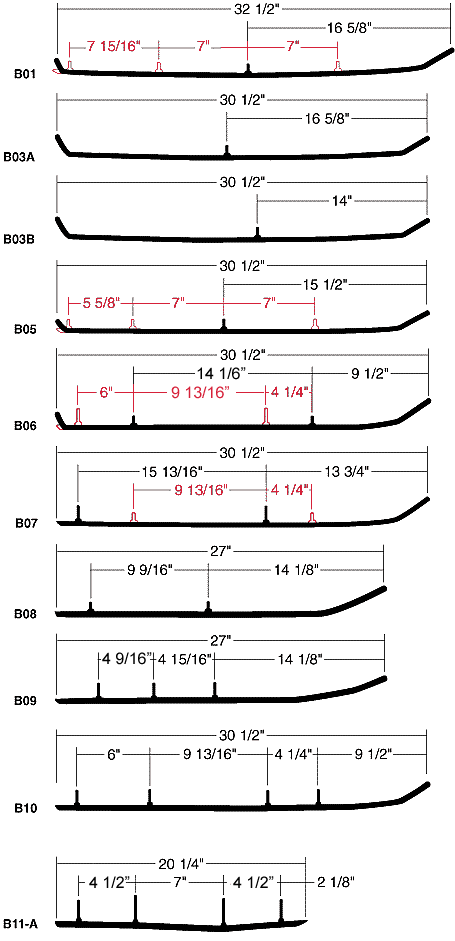

Arctic Cat Wear Rod Application Chart

Red = Carbide Bolt Pattern

B11-A Note:
We don't put a 90 degree bend at the front of the wear rod because we don't believe you should have to use a hammer to install wear rods.  Also, if the bend is not absolutely perfect, you would have to grind the rod to make it fit.  We do cover enough of the hole, so snow will not come through it.


These factory wear rods' front bend does not fit into the ski because it is not on the same plane as the bolt. The 3/8" bolts are difficult to install into the 3/8" holes in the ski. Also, the factory rod bolt spacing was incorrect.

B11-B Note: We don't put a 90 degree bend at the front of the wear rod because we don't believe you should have to use a hammer to install wear rods.  Also, if the bend is not absolutely perfect, you would have to grind the rod to make it fit.  We do cover enough of the hole, so snow will not come through it.


B13-S

B14: The same as the B13 except the ski needs to be drilled for the rear bolt.
